My name is El Hajj Malick Diagne, and I am an amateur engineer and physicist. My main interests are in robotics, control systems, electronics, and computational physics. I am currently an early-college experience student at The Ohio State University and a member of First Robotics Team 3324, The Metrobots. My goal is to major in robotics engineering, if the university offers it, or electrical and computer engineering. I am always looking to learn something new and expand my skill set. I am currently learning how to design printed circuit boards and create mobile apps using Jetpack Compose.

package frc.robot.subsystems.drivetrain;

import com.studica.frc.AHRS;
import com.studica.frc.AHRS.NavXComType;

import edu.wpi.first.math.geometry.Rotation2d;
import edu.wpi.first.math.kinematics.ChassisSpeeds;
import edu.wpi.first.math.kinematics.SwerveDriveKinematics;
import edu.wpi.first.math.kinematics.SwerveModuleState;
import edu.wpi.first.wpilibj2.command.SubsystemBase;
import frc.robot.Constants.DriveConstants;

/**
    * The robot uses four swerve modules in a square configuration. The code is based on the template
    * provided by Rev Robotics at https://github.com/REVrobotics/MAXSwerve-Java-Template/tree/main.
    */
public class DrivetrainSubsystem extends SubsystemBase {
    private final SwerveModule frontLeft = new SwerveModule(
            DriveConstants.frontLeftDrivingId,
            DriveConstants.frontLeftTurningId,
            DriveConstants.frontLeftAngularOffset);
    private final SwerveModule frontRight = new SwerveModule(
            DriveConstants.frontRightDrivingId,
            DriveConstants.frontRightTurningId,
            DriveConstants.frontRightAngularOffset);
    private final SwerveModule backRight = new SwerveModule(
            DriveConstants.backRightDrivingId,
            DriveConstants.backRightTurningId,
            DriveConstants.backRightAngularOffset);
    private final SwerveModule backLeft = new SwerveModule(
            DriveConstants.backLeftDrivingId,
            DriveConstants.backLeftTurningId,
            DriveConstants.backLeftAngularOffset);

    /** The robot uses a Studica NavX2 MXP IMU accelerometer connected to the MXP port on the RoboRio.
        * All measurements are given in terms of degrees. */
    private final AHRS gyro = new AHRS(NavXComType.kMXP_SPI);

    public DrivetrainSubsystem() {
        zeroHeading();
    }

    /**
        * Drive the robot using inputs from the joysticks. The x-speed is from the x-axis of the left joystick.
        * The y-speed (left-to-right) is from the y-axis of the left joystick. The rotation is from the y-axis
        * of the right joystick.
        *
        * @param xSpeed The speed of the robot in the x-direction (front-to-back) on a [-1.0, 1.0] scale.
        * @param ySpeed The speed of the robot in the y-direction (left-to-right) on  a [-1.0, 1.0] scale.
        * @param rot The rotation of the robot on a [-1.0, 1.0] scale.
        * @param fieldRelative Whether or not to drive the robot relative the current field.
        */
    public void drive(double xSpeed, double ySpeed, double rot, boolean fieldRelative) {
        // Convert the commanded speeds into the correct units for the drivetrain
        double xSpeedDelivered = xSpeed * DriveConstants.maxSpeed;
        double ySpeedDelivered = ySpeed * DriveConstants.maxSpeed;
        double rotDelivered = rot * DriveConstants.maxAngularSpeed;

        var swerveModuleStates = DriveConstants.driveKinematics.toSwerveModuleStates(
                fieldRelative
                        ? ChassisSpeeds.fromFieldRelativeSpeeds(xSpeedDelivered,
                                ySpeedDelivered,
                                rotDelivered,
                                getHeading())
                        : new ChassisSpeeds(xSpeedDelivered, ySpeedDelivered, rotDelivered));
        setModuleStates(swerveModuleStates);
    }

    /**
        * Sets the state of each module.
        *
        * @param desiredStates An array of SwerveModuleStates in the order [frontLeft, frontRight,
        * backLeft, backRight].
        */
    public void setModuleStates(SwerveModuleState[] desiredStates) {
        SwerveDriveKinematics.desaturateWheelSpeeds(desiredStates, DriveConstants.maxSpeed);
        frontLeft.setDesiredState(desiredStates[0]);
        frontRight.setDesiredState(desiredStates[1]);
        backLeft.setDesiredState(desiredStates[2]);
        backRight.setDesiredState(desiredStates[3]);
    }

    /**
        * Calls the resetEncoders() method on all modules. Might remove if unused.
        */
    public void resetEncoders() {
        frontLeft.syncAndResetEncoders();
        frontRight.syncAndResetEncoders();
        backLeft.syncAndResetEncoders();
        backRight.syncAndResetEncoders();
    }

    /**
        * Sets the yaw of the gyrometer to 0.
        */
    public void zeroHeading() {
        gyro.reset();
    }

    /**
        * @return The heading of the robot as Rotation2d object. The output is continuous (i.e. 361º
        * does not wrap around to 1º). If the gyro is reversed (see Constants.java), then the direction
        * is reversed.
        */
    public Rotation2d getHeading() {
        double direction = DriveConstants.isGyroReversed ? -1 : 1;
        return Rotation2d.fromDegrees(direction * gyro.getAngle());
    }
}

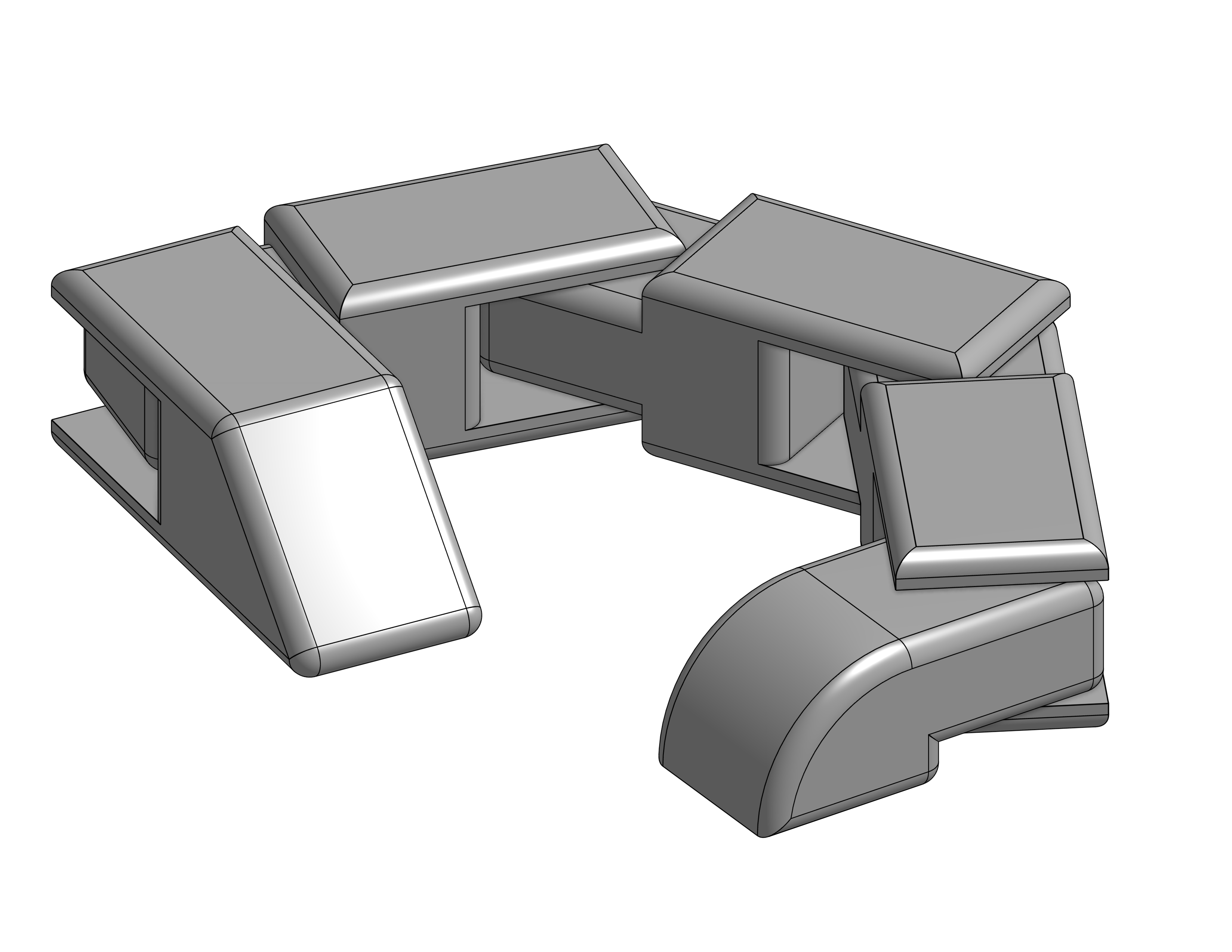

Articulated Snake Fidget Model

In terms of programming languages, I mainly use Rust, Kotlin, and Python, but I am also proficient in C, C++, Java, and TypeScript. While web and app development aren't personal interests of mine, I am comfortable using SvelteKit to build websites, such as this one. I have experience working with multiple popular microcontroller families including Arduino, ESP32, and STM32 development boards. I am also experienced at using Onshape for 3D CAD work. You can see a full list of my projects here.
